Features: This system is a multi-functional portable active speaker. It features pure, perfect sound and everlasting quality. The Item had been designed for an easy operation. 2-Way full range12” Woofer and 1” Tweeter active speaker. Integrated FM/USB/SD/Bluetooth player + Remote control. Built-in 18.5V lithium rechargeable battery for up to 6 hours operation. Two wired microphones […]

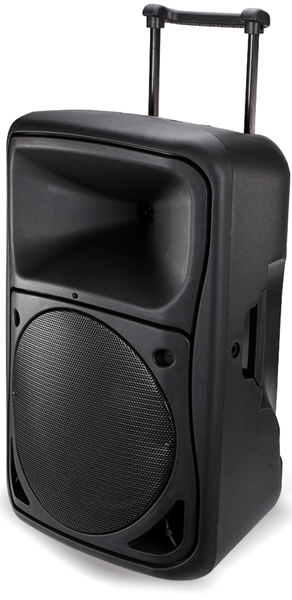

- This system is a multi-functional portable active speaker.
- It features pure, perfect sound and everlasting quality.
- The Item had been designed for an easy operation.
- 2-Way full range12” Woofer and 1” Tweeter active speaker.
- Integrated FM/USB/SD/Bluetooth player + Remote control.
- Built-in 18.5V lithium rechargeable battery for up to 6 hours operation.
- Two wired microphones and two wireless microphones system can be used simultaneously.
- Separate volume control for 2 handheld, wireless and Player / AUX + Master Volume.
- One AUX / Line level input with volume control for external source.
- One Headphones output.
- One REC / LINE output.
- Treble & Bass control on master section.
- Echo & Talk Over controls are suitable for the microphones (over Music from Player / AUX.).
- Retractable trolley with top handle makes the item easy for transportation.
- Heavy Duty PP cabinet and general reliable mechanical built. 35mm standard stand socket on bottom.
- Optional: Woven protecting cover with 2 closed departments on sides (for microphones and cables).
- System: 2-Way high power, full range active speaker with built-in crossover.
- Drivers: 12″ custom made 2 Ohm Woofer + 1″ Horn + Compression Driver, 94dB 1W/1m sensitivity.
- Amplifier Output power: Class D 240W Peak, 84W RMS at mains operation voltage.
- Amplifier Spec.: 40Hz -18KHz, -3dB. THD < 0.03 at 10W RMS.
- Player: Professional FM/USB/SD/Bluetooth player with digital screen + Remote control and
- FM Facilities: 20 memorized stations with auto search and manual seek options.
- FM Spec: 14dB Sensitivity with 1/4 wave internal antenna, 40Hz to 15KHz response.
- USB / SD facilities: 6 large knobs control, 16G DOK, 4 Digital numbers, MP3 & WAV support.
- USB / SD Spec.: 20Hz to 20KHz response at maximum 0.03% THD (1KHz) on WAV.
- Bluetooth facilities: Auto connection, version 4.2 and 30FT range with internal antenna.
- Wireless microphone: 2 wireless microphones: One Handheld and One Headset at permitted frequencies VHF 04HHM, 80m Range of operation for Handheld and 60m for Headset.
- Handheld Wireless Mic Spec.: 50Hz-16KHz Dynamic Cardioid Cartridge, S/N 96dB, 0.18mV/uBar.
- Headset Spec.: 42gr flexible design, Lithium recharged (USB) internal Battery, 40Hz-18KHz Electret.
- Wireless Receiver: Dual Channel with internal 1/4 wavelength Antennas and 2 RF reception pilot LED.
- System Frequency Response: 45Hz-20KHz,-10dB.
- System T.H.D: <0.12% at 10W output 1KHz.
- Main power supply: AC100~250V/50Hz 1A.
- Back-up power supply: External DC12~21V and Built-in 18.5V lithium rechargeable battery.
- Battery charging: Auto protected type. Red LED= Charging Green LED = Full and no LED =Low Bat.
- Dimensions: 420(L)x340(W)x650(H) mm
- Weight:14.7Kg net
- The company reserves the right to change the specification without prior notice.
