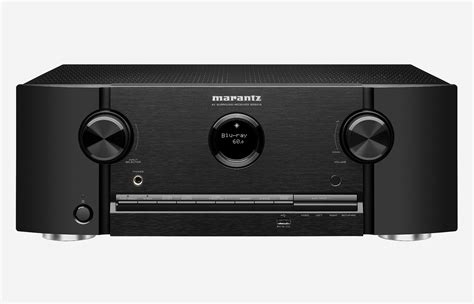

רסיבר לקולנוע ביתי MARANTZ דגם SR5015

Multichannel Surround
DTS HD Master / DTS:X / DTS:X Pro Yes / Yes / No
DTS Neo:X / DTS Neural:X No / Yes
DTS Virtual:X Yes
IMAX Enhanced No
Dolby TrueHD / Dolby Atmos/Dolby Atmos Height Virtualization Yes / Yes / Yes
Dolby ProLogic Ilz / Dolby Surround No / Yes
Auro 3D No
Audyssey DSX No
Multichannel Stereo Yes
Max Number of Processing (Preamp) Channels 7.1
Sound Enhancements
Discrete Power Amplifier Yes
Copper Plated Chassis No
Power Transformer: Toroidal / EI EI
Current Feedback Topology Yes
Hyper Dynamic Amplifier Modules (HDAM) Yes
Pure Direct Yes
Gold plated RCA terminals No
Clock Jitter Reducer No
Audyssey MultEQ XT
Audyssey Dynamic EQ / Dynamic Volume Yes / Yes
Audyssey LFC No
Audyssey APP Support Yes
Compressed Audio Enhancer: MDAX2 Yes
Network
HEOS Multi-room and Streaming Yes
Bluetooth Re-transmit for Bluetooth headphones Yes
Alexa / Google Voice Assistant / Apple HomePod Yes / Yes / Yes
Network Audio Sharing Yes
Lossy Formats: MP3 / WMA / AAC Yes / Yes / Yes
Lossless formats FLAC / ALAC / WAV Yes / Yes / Yes
Lossless formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24 Yes / Yes / Yes
DSD Audio Streaming Yes (2.8/5.6MHz)
FLAC HD 192/24 Yes
WAV 192/24 Yes
ALAC 192/24 Yes
Gapless Playback Yes (FLAC, WAV ,ALAC ,DSD)
AirPlay Audio Streaming Yes (AirPlay2)
Internet radio Yes (TuneIn)
Spotify* Yes (connect)
Pandora Yes
SiriusXM Yes
Compatible with Remote APP for Smart Phones Marantz 2016 AVR Remote
Compatible with Remote APP for Tablets Android / iOS / Amazon Kindle
Ethernet Ports Yes
Wi-Fi Yes
Bluetooth Yes
HDMI
HDMI Inputs: Back / Front 6 / 0
HDCP2.3 support Yes
HDMI Outputs: Main / Zone 2 / No
Video Conversion Analog -> HDMI Yes
Analog to HDMI Scaling 480i/576i up to 8K 60/50
HDMI to HDMI Scaling up to 8K 60/50
GUI Overlay on HDMI Yes
HDMI 2.1: 8K/60Hz / 4K/120Hz Yes / Yes
HDMI 2.0: 3D / 4K / CEC / ARC Yes / Yes / Yes / Yes / No
Enhanced ARC Yes
HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR Yes / Yes / Yes / Yes / Yes (update)
ALLM (Auto Low Latency Mode) Pass-through for gaming Yes
Variable Refresh Rate / Quick Flame Transport / Quick Media Switching Yes (update) / Yes (update) / Yes (update)
3D Signal Pass-Through Yes
8K signal pass-through / scaling / GUI overlay Yes / Yes / Yes
4K Signal Pass-Through / Scaling / GUI Overlay Yes / Yes / Yes
HDMI Pass-Through in Standby Mode Yes
Picture Adjust / Noise Reduction Yes / Yes
CEC Yes
DSD Audio Capability No
Audio Return Channel Yes
Auto LipSync Yes
Multi-Room / CI
HEOS Multi-Room Integrated Yes
HEOS Link Compatibility: IR/ IP Yes / Yes
Multi-Room Zones 2
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog Yes (2ch) / Yes (2ch) / Yes / Yes
Zone Audio Output: Speaker / Preout Yes / Yes
Zone HDMI Output from HDMI Source No
IP Control / RS232 Control / Web Control / App Control Yes / Yes /Yes / Yes
IR Flasher In Yes
Marantz Remote Bus Yes
DC Trigger Output 1
HDMI Diagnostics Yes
Others
Auto Speaker Setup by Microphone Audyssey MultEQ XT
FL Display port hole
Graphic User Interface – GUI Advanced
ISF Certification Yes
GUI Languages 3
Setup Assistant Yes
Smart Select Yes
Firmware Update by Network / USB Yes / Yes
Variable Cross Over Yes
Optimized Bass Redirection Yes
Bass Sync No
ECO Mode Yes
Auto Power off Yes
Sleep / Timer Yes
Inputs/Outputs
Composite In / Out 2+1 / 1
Component In / Out 2 / 1
HDMI In / Out 6 / 2
Multi-Room Video Out: Video / HDMI No / No
Analog In / Out 4+1 / No
Phono (MM) In Yes
Digital In: Optical / Coaxial 2 / 2
Multi-Room Out: Analog / Digital 1 / No
Multichannel Pre Out Yes (7.2)
Subwoofer Out 2
7.1 Multichannel Input No
Speaker Terminal: Gold Plated Screw / Regular Screw No / Yes
Number of Speaker Terminals 7
Speaker A / B assignable
Bi-Amp Drive assignable
Multi-Room Speaker Terminal assignable
Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB Yes / Yes / No / No / Yes
USB Audio / Made for iPod / Made for iPhone Yes / No / No
AM/FM Tuner Yes
Specifications
Number of poweramps 7
Power Output (8 ohm, 20 Hz – 20 kHz, 0.08% 2ch Drive) 100 W
Power Output (8 ohm, 20 Hz – 20 kHz, 0.05% 2ch Drive) No
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) 140 W
Power Output (6 ohm, 1 kHz, 10% 1ch Drive) 200 W
70% Guarantee Yes
General
Metal Front Panel No
System Remote Control RC042SR
Pre-Programmed / Learnable / LCD Display No / No / No
Power Consumption in W 650
Power Consumption No-Sound (ECO on/off) in W 45 W / 75 W
Standby Consumption in W 0.2
CEC Standby Consumption in W 0.5
Network Standby Consumption in W 2.7
Network Control On Consumption in W No
Maximum Dimensions
Antenna:Horizontal:(W x D x H) in inches
Antenna:Vertical :(W x D x H) in inches
W/o Antenna:(W x D x H) in inches TBD
17.3 x 13.7 x 6.3
(17.3 x 13.7 x 9.1)
【 17.3 x 13.3 x 6.3 】
