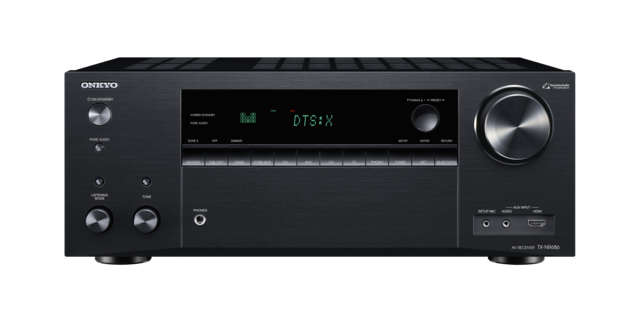

TX-NR686

מודל: TX-NR686

THX® Certified Select™ cinema reference sound
Supports 5.2.2-channel Dolby Atmos® and DTS:X® playback
165 W per channel
HDMI® 7 in (1 front*1) / Main Out, and Sub Out*2 supporting 4K/60 Hz, HDR10, HLG, Dolby Vision™, BT.2020, and HDCP 2.2 pass-through
Dynamic Audio Amplification with 4-ohm speaker-driving capability
384 kHz/32-bit DAC and VLSC™ filtering for superior clarity
Supports Chromecast built-in and works with the Google Assistant
Dual-band Wi-Fi®, DTS Play-Fi®, AirPlay, Amazon Music, Spotify®, TIDAL, Deezer, TuneIn*3
FlareConnect™ wireless multi-room audio

מחיר:

מעוניינים במוצר זה? השאירו פרטים ואנו נחזור אליכם בהקדם
array(2) { ["description"]=> array(3) { ["title"]=> string(8) "תאור" ["priority"]=> int(10) ["callback"]=> string(35) "woocommerce_product_description_tab" } ["additional_information"]=> array(3) { ["title"]=> string(23) "פרטים נוספים" ["callback"]=> string(46) "woocommerce_product_additional_information_tab" ["priority"]=> int(11) } }

THX® Certified Select™ cinema reference sound
Supports 5.2.2-channel Dolby Atmos® and DTS:X® playback
165 W per channel
HDMI® 7 in (1 front*1) / Main Out, and Sub Out*2 supporting 4K/60 Hz, HDR10, HLG, Dolby Vision™, BT.2020, and HDCP 2.2 pass-through
Dynamic Audio Amplification with 4-ohm speaker-driving capability
384 kHz/32-bit DAC and VLSC™ filtering for superior clarity
Supports Chromecast built-in and works with the Google Assistant
Dual-band Wi-Fi®, DTS Play-Fi®, AirPlay, Amazon Music, Spotify®, TIDAL, Deezer, TuneIn*3
FlareConnect™ wireless multi-room audio
ADVANCED FEATURES

HDMI terminals supporting HDR10, HLG, Dolby Vision™, BT.2020, 4K/60 Hz pass-through, and HDCP 2.2
5.2.2-channel Dolby Atmos playback and Dolby Surround upmixing for audio formats including DTS® codecs
DTS:X playback and DTS Neural:X® 3D upmixing supporting Dolby® formats
AccuEQ Room Acoustic Calibration with AccuReflex phase alignment for Dolby Atmos-enabled speakers
Supports Onkyo Controller app*4 for intuitive multi-room operation
Stable 5 GHz/2.4 GHz Wi-Fi connectivity
Chromecast built-in wireless audio streaming technology that works with the Google Assistant
DTS Play-Fi multi-room audio with Onkyo Music Control App*4
AirPlay audio streaming from iTunes and iPad, iPhone, and iPod touch
Hi-Res Audio playback including DSD 5.6 MHz/2.8 MHz*5, 192 kHz/24-bit FLAC*6, WAV (RIFF)*6, AIFF, ALAC*6, and Dolby® TrueHD*7
Supports Amazon Music, Spotify, TIDAL, and Deezer music streaming services and TuneIn internet radio
FlareConnect multi-room audio distribution to compatible components
Powered Zone 2 speaker outputs and Zone 2 line-output with DAC supporting digital*8 and analog audio playback
Bluetooth® wireless technology for mobiles, laptops, and PCs (Version 4.1 + LE, Profile: A2DP v1.2, AVRCP v1.3)
Advanced Music Optimizer improves compressed digital audio quality, including Bluetooth audio
Support for front L/R bi-amping in a 5.2-channel speaker layout
480i de-interlacing (480i to 480p) via HDMI for legacy video formats
AMPLIFIER FEATURES

165 W/Ch (6 Ω, 1 kHz, 1% THD, 1 Channel Driven, IEC)
Dynamic Audio Amplification delivers thrilling multichannel and stereo performance
High-current power drives large speakers with 4-ohm resistance
H.C.P.S. (High Current Power Supply) customized transformer
VLSC (Vector Linear Shaping Circuitry) high-frequency noise removal (for front L/R channels)
Non-phase-shift amplification circuitry for clarity and detail
Discrete output stage circuitry for low distortion
PROCESSING FEATURES

Dolby Atmos and DTS:X reproduction (supports 5.2.2 channels)
HDMI support for 4K/60 Hz, HDR10, HLG, Dolby Vision, 3D, Audio Return Channel, DeepColor™, x.v.Color™, LipSync, Dolby Atmos, Dolby TrueHD, DTS:X, DTS-HD Master Audio™, DSD, DVD-Audio, Super Audio CD (SACD), multichannel PCM, and CEC
High-grade AKM (AK4458) 384 kHz/32-bit multichannel DAC
PLL (Phase Locked Loop) jitter-cleaning technology for S/PDIF audio
32-bit Digital Signal Processing (DSP)
Listening modes for gaming (Rock, Sports, Action, and RPG)
Theater-Dimensional virtual surround function
Direct Mode for audio reproduction close to original source quality
Tone controls (bass/treble) for front L/R channels
CONNECTION FEATURES

7 HDMI inputs (1 front) and 2 outputs (1 Main Out, 1 Sub Out)
Powered USB terminal (5 V, 1 A) for audio playback
2 composite video inputs and 2 component video inputs
3 digital audio inputs (2 optical and 1 coaxial)
6 analog audio inputs, 1 stereo 3.5 mm analog input (front)
Phono input (MM) and equalizer for turntable connection
2 subwoofer pre-outs
6.35 mm headphone jack (front)
Speaker setup mic input (front)
Speaker posts with screw knobs
OTHER FEATURES

Crossover adjustment for each channel (40/50/60/70/80/90/100/120/150/180/200 Hz)
A/V Sync Control (up to 500 ms in 5 ms steps at 48 kHz)
Graphical User Interface with overlaid On-Screen Display via HDMI
Quick Setup Guide via GUI and easy connection diagram on rear panel
Large input selector buttons
Economical HDMI pass-through and Network Standby functions
IP control support for home automation systems
3-mode display dimmer (normal/dim/dimmer)
40 FM/AM random presets
Simple remote control
